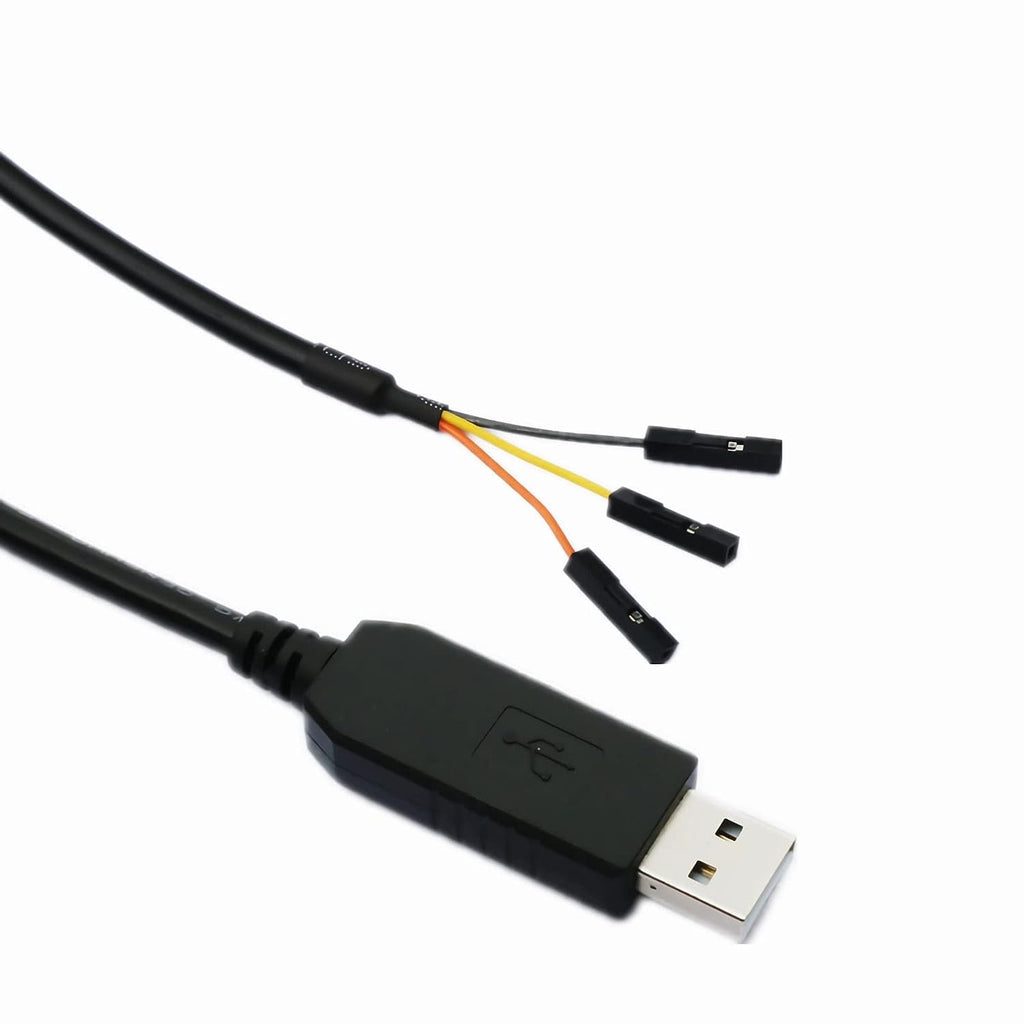

TTL-232R-RPi is a USB to TTL level serial UART converter cables incorporating FTDI’s FT232RL USB to Serial UART interface IC device which handles all the USB signalling and protocols. The TTL-232R-RPi is designed for use with the Raspberry Pi (RPi), an ultra-low cost, Linux based miniaturised computer. The debug cable sits on the Rx/Tx of the RPi ARM processor UART – which provides much more detail of what’s happening within the RPi operating system. Connecting the debug cable to a PC and communicating with the RPi via a terminal emulator on a PC gives the user access to more detailed information from the Linux kernel during RPi start-up,which appears on the Rx/TX lines of the UART, as well as being able to login and access the kernel itself from the PC. Connect directly to a microcontroller UART or I/O pins.UHCI / OHCI / EHCI host controller compatible.3 pieces ‘flying leads’outputs provide TXD, RXD and GND signals.Data transfer rates from 300 baud to 3 Mbaud at TTL levels.Fully assisted X-On /X-Off software handshaking.Internal EEPROM with user writeable area.USB 2.0 Full Speed compatible.Support for FT232R FTDIChip-ID feature for improved security.TTL-232R-RPi Debug cable provides a USB to TTL Serial interface for Raspberry Pi computerOn board FT232RL provides single chip USB to asynchronous serial data transfer interface.Entire USB protocol handled by the electronics in the cable USB.Low USB bandwidth consumption.-40°C to +85°C operating temperature range.
