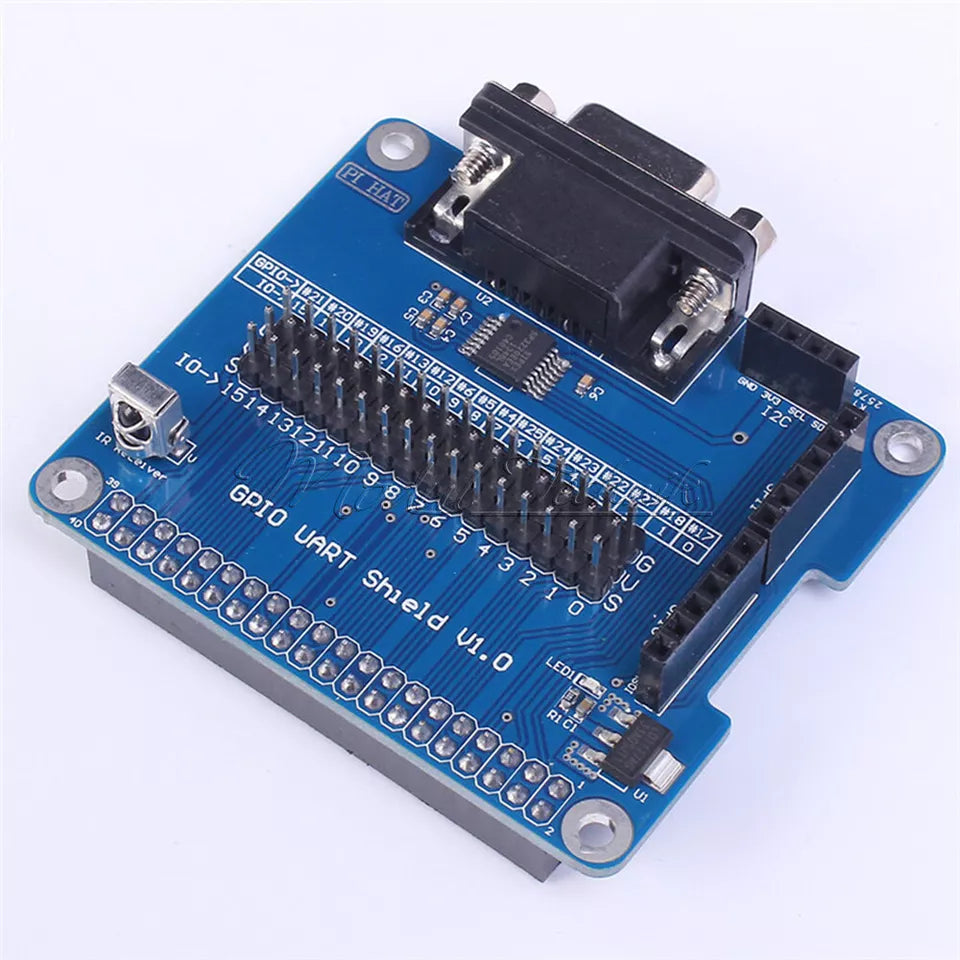

GPIO UART expansion board Raspberry Pi 3B / 2B / B +, 40Pin, 2SPI, 1I2C, RS232
GPIO UART Shield V1.0 for Raspberry Pi 3B 2B, B +, 40Pins
GPIO UART Shield V1.0 for Raspberry Pi 3B 2B, B +, 40Pins
The design is based on the old Raspberry Pi Bserial expansion board. The electronics are updated and several functions are added and are 100% self-developed. Therefore this is strongly recommended!
Dimensions of the expansion unit: 65 mm x 56.5 mm, standard dimensions of an RPI HAT expansion unit
Dimensions of the expansion unit: 65 mm x 56.5 mm, standard dimensions of an RPI HAT expansion unit
GPIO function expansion:
16 independent GPIO interfaces each with power supply and earthing (3V3 level), the print on the board corresponds to the relationship table and is therefore clear.
2 independent SPI interfaces and 1 I2C interface.
1 standard RS232 interface, for connection to PC and other devices (for Raspberry Pi a serial interface with ttl-levels is offered, which does not support the connection with PC).
2 independent SPI interfaces and 1 I2C interface.
1 standard RS232 interface, for connection to PC and other devices (for Raspberry Pi a serial interface with ttl-levels is offered, which does not support the connection with PC).
Additional indicator for power supply
Additional reception via infrared
Additional reception via infrared
Package Include:
1 x GPIO UART Raspberry Pi expansion board
